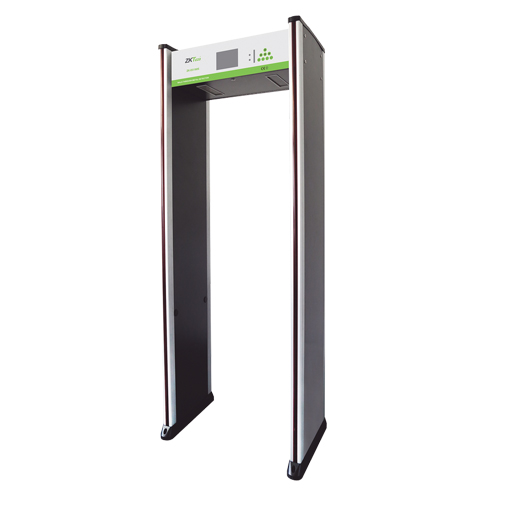

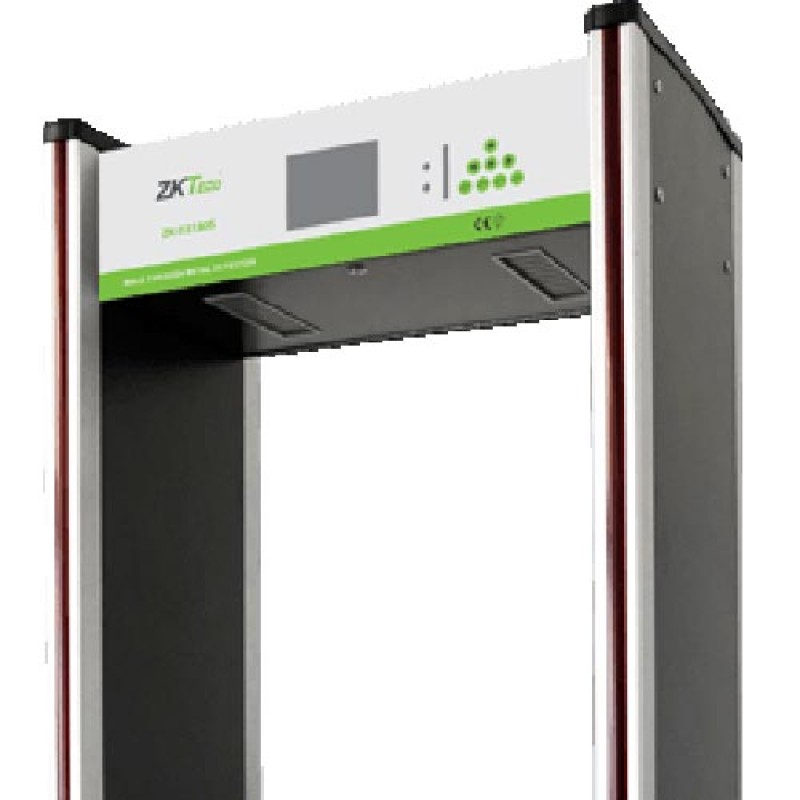

ZKTeco ZK-D3180S Walk Through 18 Zones Archway Gate

ZKTeco Walk Through 18 Zones Metal Detector ZK-D3180S

• Eighteen mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable: Each zone has 256 sensitivity level, 0-255 adjustable

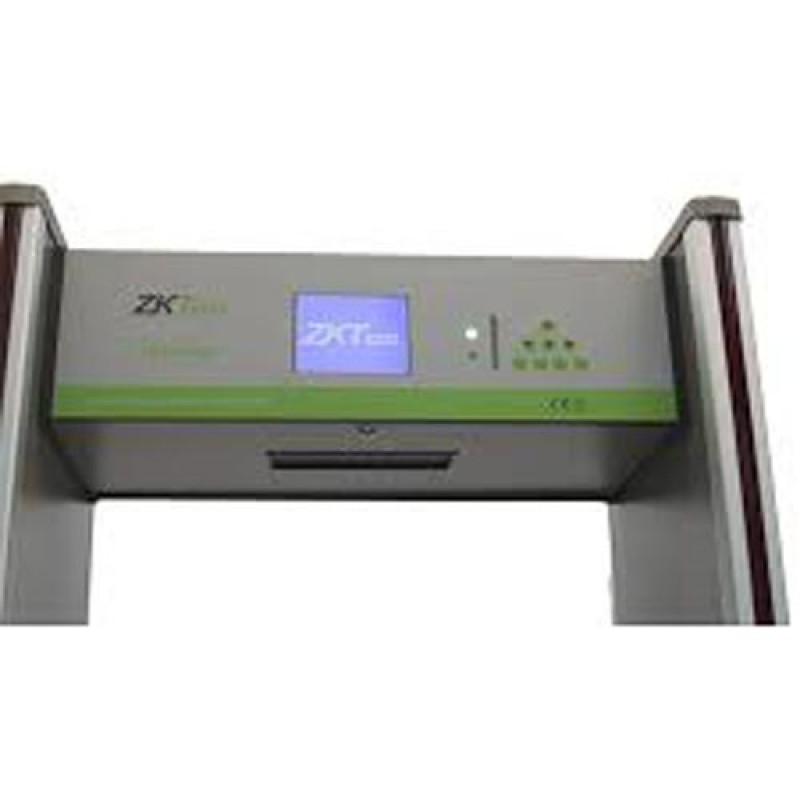

• 5.7 inch LCD screen
• Infrared remote control
• Sound & LED alarm: Both Side LED indicator, easily show where the metal is.
• Automatically count passengers and alarm times
• Alarm strength indicator on control panel
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
• Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Using high density fireproof material
• Program Self-diagnostic when power on,no need initial or periodic calibration
• Modularization design,easy for maintenance and replacement.
• 4-8 hours backup battery (Option)

Technical Specifications:
Power Supply: AC100 V-240 V
Working temperature: -20℃–+50℃
Working Frequency: 4KHZ—8KHZ
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2260*650*260mm *1ctn
Package size for control unit: 780*390*250 mm*1ctn
Gross weight: 70KG

Warranty: 1 year
