DOWNLOAD DATA SHEET

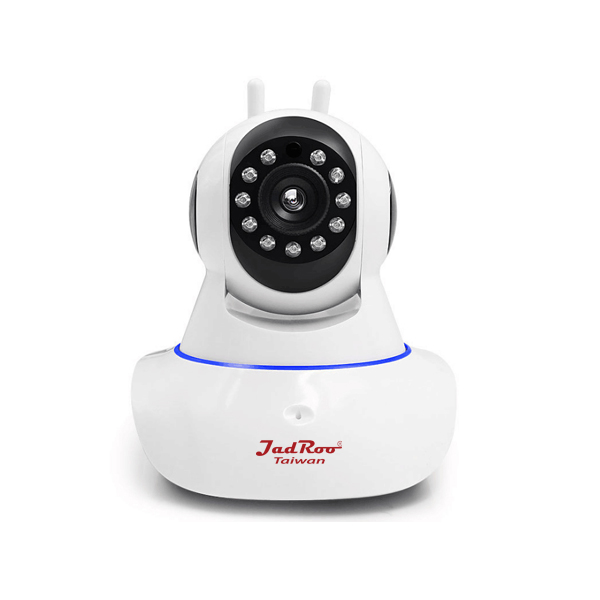

| Smart Home HD P2P IP Wi-Fi IP camera | ||||
| Model: JR-N3001HC-3 | Main Feature | |||
| ◆ 1/4″ 1.0Megapixel CMOS Sensor,H.264 Compression ◆ Support P2P , Plug &Play, simple and quick to setup, friendly user interface ◆ HD image & video quality, Two-way audio intercom ◆ 720p（1280*720)，D1（704*480），CIF（352*240）,dual stream ◆ 10 Meters IR distance, mechanical IR-Cut device offers outstanding day/night performance ◆ Support Smart Phone remote monitoring anywhere anytime: IPhone(IPad),Android, Windows, Blackberry ◆ Allow remote Pan/Tilt control (Pan:355°& Tilt:90°) ◆ Support IE browser or any other standard browsers ◆ Wi-Fi compliant with wireless standards IEEE 802.11b/g/n ◆ Motion detection alert via email or upload image to FTP ◆ Multi-level users management with password protection ◆ Maximum support 64GTF Card storage ◆ Support external Alarm, 1ch input/output ◆ Support Email & FTP Alarm |
||||
| Specification | ||||
| Image Sensor | Image Sensor | 1/4″ HD 1Megapixel CMOS sensor | ||
| Display Resolution | 1280*720 Pixels | |||
| Lens | 3. 6mm | |||
| Min. Illumination | 0.5Lux （0LUX on） | |||
| Audio | Input/output | Built in Microphone, 3.5mm audio Jack output | ||
| Audio Compression | G.711, ADPCM/32kbps | |||
| Video | Image Compression | H.264 | ||
| Light Frequency | 50Hz, 60Hz | |||
| Image Resolution | 720p（1280*720），D1（704*480），CIF（352*240） | |||
| Image frame rate | 1~25fps | |||
| View | H.264 dual streaming | |||
| Image adjust | The brightness, contrast, saturation, chromaticity, is adjustable | |||
| White balance | Automatic, Indoor, outdoor , is adjustable | |||
| Infrared mode | Automatic , manual (on/off) | |||
| Night visibility | Φ5mm 11 IR LEDs, Night visibility up to 10 meters | |||
| Network | Ethernet | One 10/100Mbps RJ-45 | ||
| Supported Protocol | TCP/IP、UDP/IP、HTTP、SMTP、FTP、DHCP、DDNS、UPNP | |||
| Wireless Standard | WIFI(IEEE802.11b/g/n) | |||
| Data Rate | 802.11b: 11Mbps (Max.) 802.11g: 54Mbps (Max.) | |||
| 802.11n: 150Mbps（Max.） | ||||
| Support IP address | static IP address, dynamic IP address | |||
| Alarm | Alarm detection | The motion detecting, detection threshold Settings | ||
| Alarm inform | Support Email FTP etc. alarm inform way | |||
| Hardware Interface | Memory | Micro SD CARD (Support to 64G) | ||
| POWER Interface | DC 5V/2.0A (EU,US,UK adapter or other types optional) ， | |||
| Power Consumption ﹤8 Watts | ||||
| Audio Input/output | Built in audio input, One audio output jack. | |||
| Reset Buttons | One Reset | |||
| Wireless Interface | WIFI antenna | |||
| Other | Pan/Tilt Angle | Horizontal:355° & Vertical: 90° | ||
| Environment | Operate Temp | -20° ~ 55°C (32°F ~ 131°F) | ||
| Operate Humidity | 10% ~ 80% non-condensing | |||
| Storage Temp | -20°C ~ 60°C(14°F ~ 140°F) | |||
| Storage Humidity | 0% ~ 90% non-condensing | |||
| Physical | Dimension(LxWxH) | 200×179×120mm | ||
| Certification | CE FCC | |||
| Warranty | 1 year | |||
