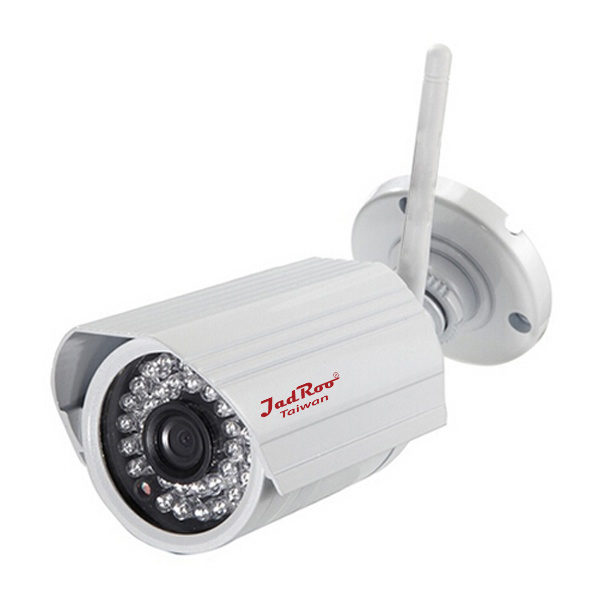

JR-IP7011W-1.1M (WiFi Bullet Camera)

DOWNLOAD DATA SHEET

Features:

1.1 Mega Pixel IP Bullet Wi-Fi Camera

IR LED: 5X48PCS IR LED

IR Range: 35M

Lens: Megapixel 3.6mm fixed board lens

With IR CUT

Color: White

Dimension: 195(L) x84(W) x83(H) mm

Weight: 0.8KG

Wi-Fi

Parameter:

Model	JR-IP7011W-1.1M
Image Sensor	HS3518C+OV9712
TV System	PAL/NTSC
Image Resolution	1280*720
Horizontal Resolution	1.0MP
SYNC.	Internal
Video Out	1.0Vp-p Composite Signal (75ohm)
Minimum illuminator	0 .001Lux (Infrared Light Open)
Gama adjust	0.45
Infrared Sensitivity	Support
S/N Ratio	58dB(min)(AGC closed)
Lens	Megapixel 3.6mm fixed board lens
Leds	48 pcs IR Led
IR Distance	35 m
DNR	Yes
AWB	AUTO
AGC	AUTO
BLC	ON/OFF
Day/Night	Yes
OSD	/
Compression Technology	H.264 Main Profile @level 3
Max Coding Rate	128-8192kbps
Encoding Type	CBR or VBR
R/N Ratio	More than 50DB
Image intensification	Brightness, Contrast, Saturation, HU Adjustable
Subtitle Input	Support Channels name, Date & time
Video Orientation	Left & Right Mirror, Up & down Flip
Audio input	Optional
Audio Format	G.711/G.726
Alarm	Motion Detection(Sensitivity adjustable)
Alert Processing	Control Center monitoring, go to preset point, Email send MSG, Log Record, Video & PIC save on PC
Network Port	Ethernet(10M/100M Base-T),RJ45
Safety	IP Address Filtering, User rank protect, User login log
Software management	CMS, Onvif support different platform software
Video Protocol	TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,R TP, and RTSP, Onvif2.0
Network Port	Support DDNS, P2P(NAT),software remote access
Power Input	DC12V±1V
Operation Temperature	Temperature -10℃～+75℃,Humidity less than 85%RH
OSD Language	English
Dimension	195(L) x84(W) x83(H)mm
Weight	0.8KG
Video Output	1.0Vp-p,75Ω
Warranty	1 Year
